Technical Specifications

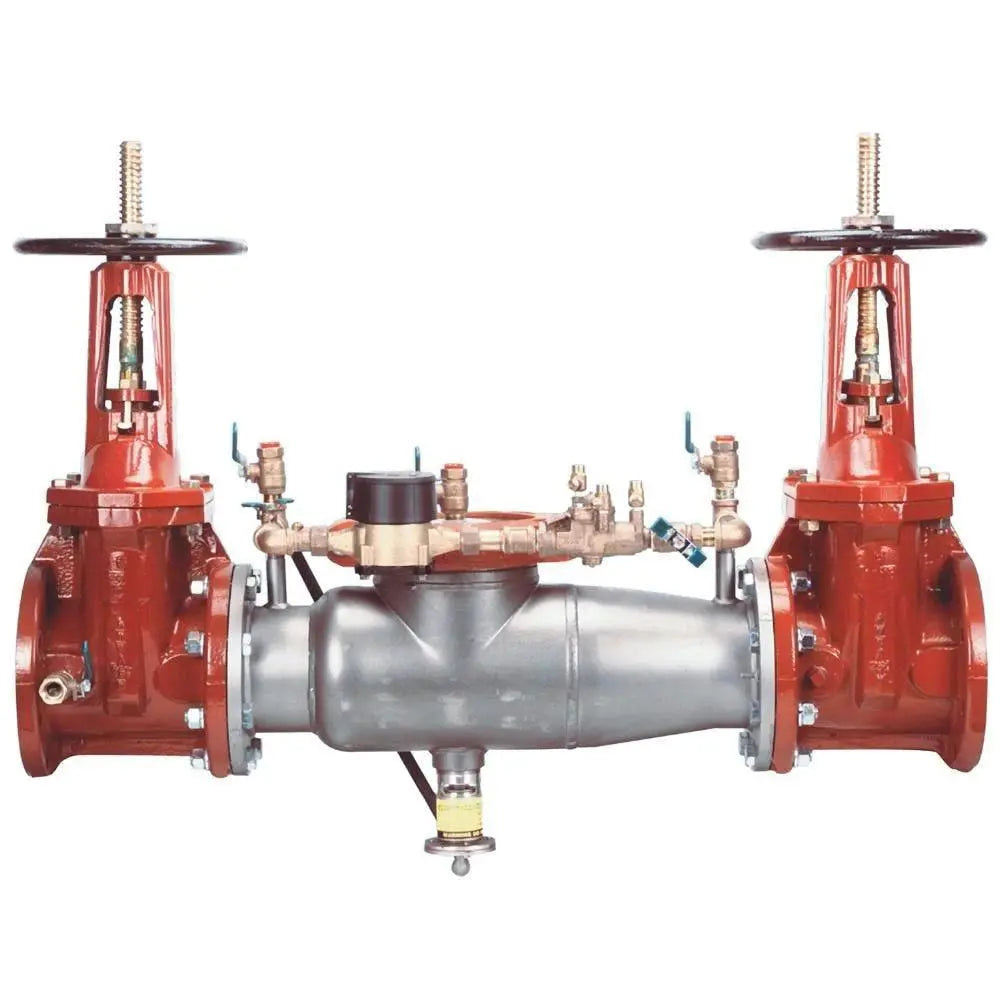

The 3" Reduced Pressure Detector Assembly with OS&Y Valve is engineered for residential fire protection applications requiring dependable backflow prevention and effective fire system safety monitoring. The main body is constructed from high-grade ductile iron coated with fusion-bonded epoxy to resist corrosion in residential plumbing environments. Internal components include stainless steel springs and fasteners made from 300-series stainless steel, optimized for durability and corrosion resistance. The device incorporates a reduced pressure principle to prevent backflow contamination, complemented by an Outside Screw and Yoke (OS&Y) valve for reliable isolation and maintenance.

Regulatory Compliance
This assembly complies with established fire protection standards and backflow regulatory requirements, including:

• UL Listed to UL 312 for backflow preventers, ensuring conformity to fire service water safety.
• FM Approved for fire protection applications, guaranteeing product reliability under municipal fire code inspections.
• Meets ASSE 1013 standards for reduced pressure principle backflow preventers, validating its performance in potable water systems.
• Conforms with NFPA 13 and NFPA 25 standards for sprinkler system installation and maintenance, facilitating code-compliant fire protection systems.

Operational Compatibility
Rated for continuous service up to 175 PSI (12.1 bar) working pressure, this assembly remains effective across typical residential water supply pressures. The device supports intermediate temperature ranges from 33°F to 140°F (0.5°C to 60°C), aligning with indoor residential environments. End connections are furnished with grooved or flanged options compliant with AWWA C606 and ANSI B16.1 respectively, ensuring compatibility with common residential fire protection piping systems. Installation supports both horizontal and vertical orientations, accommodating diverse mechanical room layouts.

The integrated OS&Y valve facilitates straightforward testing, inspection, and isolation without disrupting system operation. Pre-drilled test cocks enable annual backflow testing and differential pressure assessments, complying with municipal inspection protocols.

Use Cases and Application Insights
Ideal for residential fire sprinkler systems requiring backflow prevention to protect potable water supplies, this assembly addresses common fire safety challenges in homes. Its reduced pressure design prevents contaminants from entering water lines during pressure fluctuations, critical for maintaining water quality in residential neighborhoods.

Fire protection professionals appreciate this assembly’s durable materials and compliance certifications, reducing the risk of system downtime or regulatory non-compliance. Homeowners benefit from the proven reliability of a UL listed and FM approved unit, ensuring uninterrupted fire safety coverage.

Compared to standard check valves, this device’s reduced pressure principle offers enhanced protection against backflow of hazardous substances while its OS&Y valve allows maintenance without shutting down the entire water supply. This capability minimizes service disruptions during routine inspections or repairs.

Installation Recommendations
For optimal performance, install the assembly in accessible mechanical rooms or underground vaults with adequate clearance to operate the OS&Y valve and perform testing. Confirm pipe alignment matches the grooved or flanged connection selected to avoid stress on joints. Annual testing and maintenance per NFPA 25 recommendations are essential to verify valve integrity and system safety. Employ qualified technicians familiar with backflow assemblies and residential fire protection codes for installation and service.
