Mi-T-M HS Series Gasoline Belt Drive - HS-4004-0MGV

Mi-T-M HS Series Gasoline Belt Drive - HS-4004-0MGV

Regular price $8,190.00 USD
Regular price Sale price $8,190.00 USD
Sale Sold out
Shipping calculated at checkout.

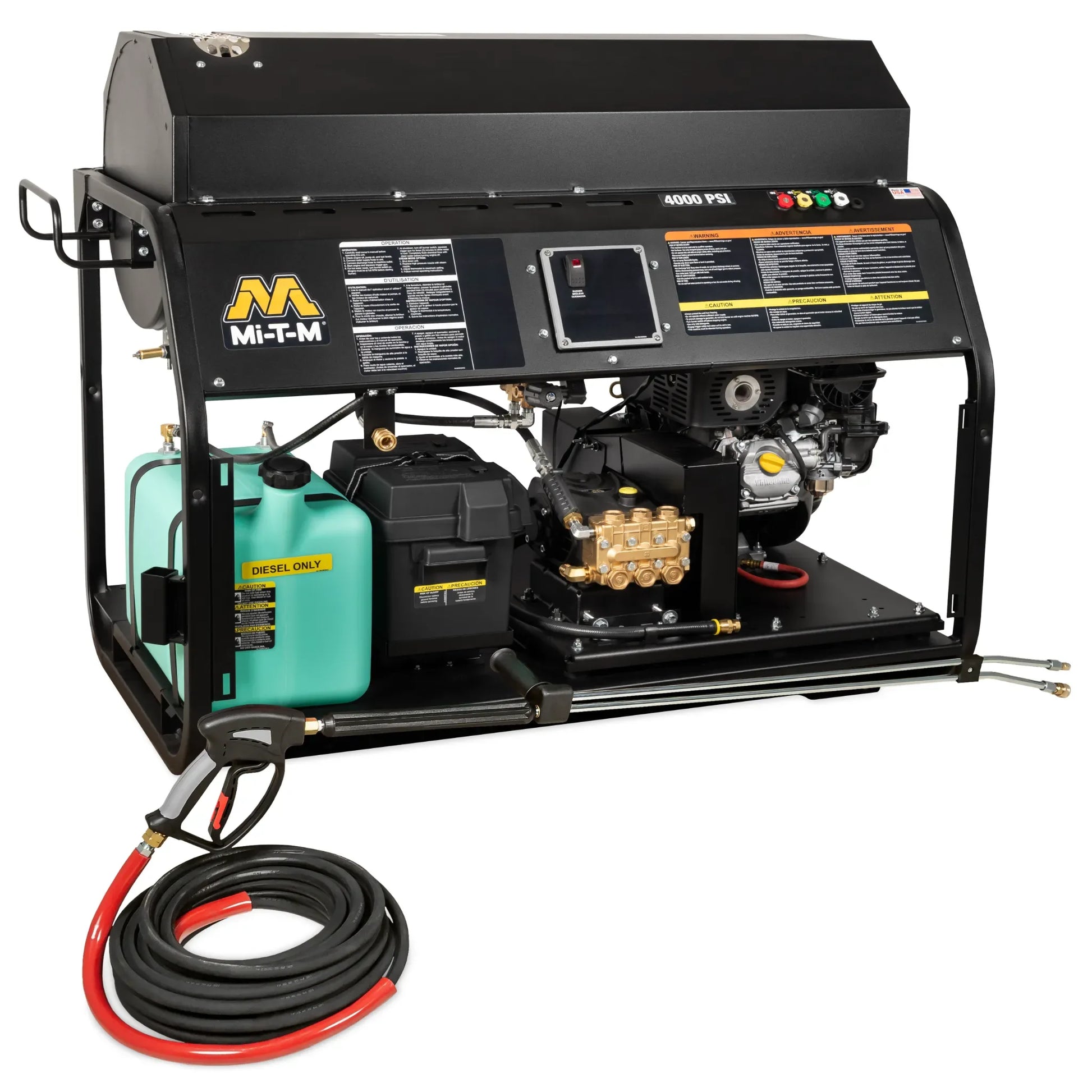

Mi-T-M HS Series Gasoline Belt Drive, Model HS-4004-0MGV

The Mi-T-M HS Series Gasoline Belt Drive HS-4004-0MGV is a powerhouse designed for professionals who need reliable, mobile hot water cleaning. Mount it to a trailer or truck and easily move between jobsites to blast away grease, oil, mud, and grime. With its durable powder-coated frame and heavy-duty belt drive system, this unit delivers outstanding performance and longevity even in the most demanding environments.

Why You'll Love the Mi-T-M HS Series HS-4004-0MGV

  • Powerful Cleaning Performance – 4000 PSI and 3.7 GPM easily cut through tough dirt and grime.
  • Durable Design – Built with a powder-coated steel frame and forged brass manifold for long-lasting reliability.
  • Professional-Grade Components – Equipped with a heavy-duty dual cogged belt drive and stainless-steel wrapped heating coil.
  • Mobile Flexibility – Designed for trailer or truck mounting, ideal for contractors on the move.
  • Reliable Operation – Includes a temperature rise of up to 150°F above ambient for superior hot water cleaning.

Perfect For:

  • Heavy-duty cleaning contractors
  • Fleet maintenance professionals
  • Construction sites and equipment cleaning
  • Agricultural and farm equipment washing
  • Oil, grease, and mud removal applications

Key Features and Benefits

  • Pump: External bypass system prevents heat build-up, with a factory preset unloader and forged brass manifold.
  • Frame: Heavy-duty powder coated steel frame built for rugged environments.
  • Components: Features a heavy-duty dual cogged belt drive system, stainless-steel coil wrap, and a No.1 or No.2 diesel/kerosene fired burner (not approved for bio-fuel).
  • Temperature Control: Temperature rise up to 150°F (66°C) above ambient, with a max outlet temperature of 200°F.
  • Accessories Included: Quick connect nozzles (0°, 15°, 25°, and 40°), 50-ft steel wire-braided hose, and adjustable pressure insulated dual lance with trigger gun.
  • Optional Upgrade: HX-0146 Hour Meter for tracking operational hours (must be ordered with the unit).
  • CARB Compliance: All gasoline models sold in California require CARB-compliant engines—consult the factory for details.

Specifications

PSI 4000
GPM 3.7
Displacement / Engine 408cc Vanguard OHV
Pump General
Engine Fuel Tank Capacity 1.51 gallon
Burner Fuel Tank Capacity 10.0 gallons
Burner Fuel Consumption 2.76 gph
BTU per Hour 386,400
Net Weight 587.00 lbs.
Shipping Weight 706.00 lbs.
Length 53.00 in.
Width 28.50 in.
Height 42.00 in.

Documents

Spec Sheet

Manual
