Mi-T-M HS Series Gasoline Belt Drive - HS-4004-1MAH

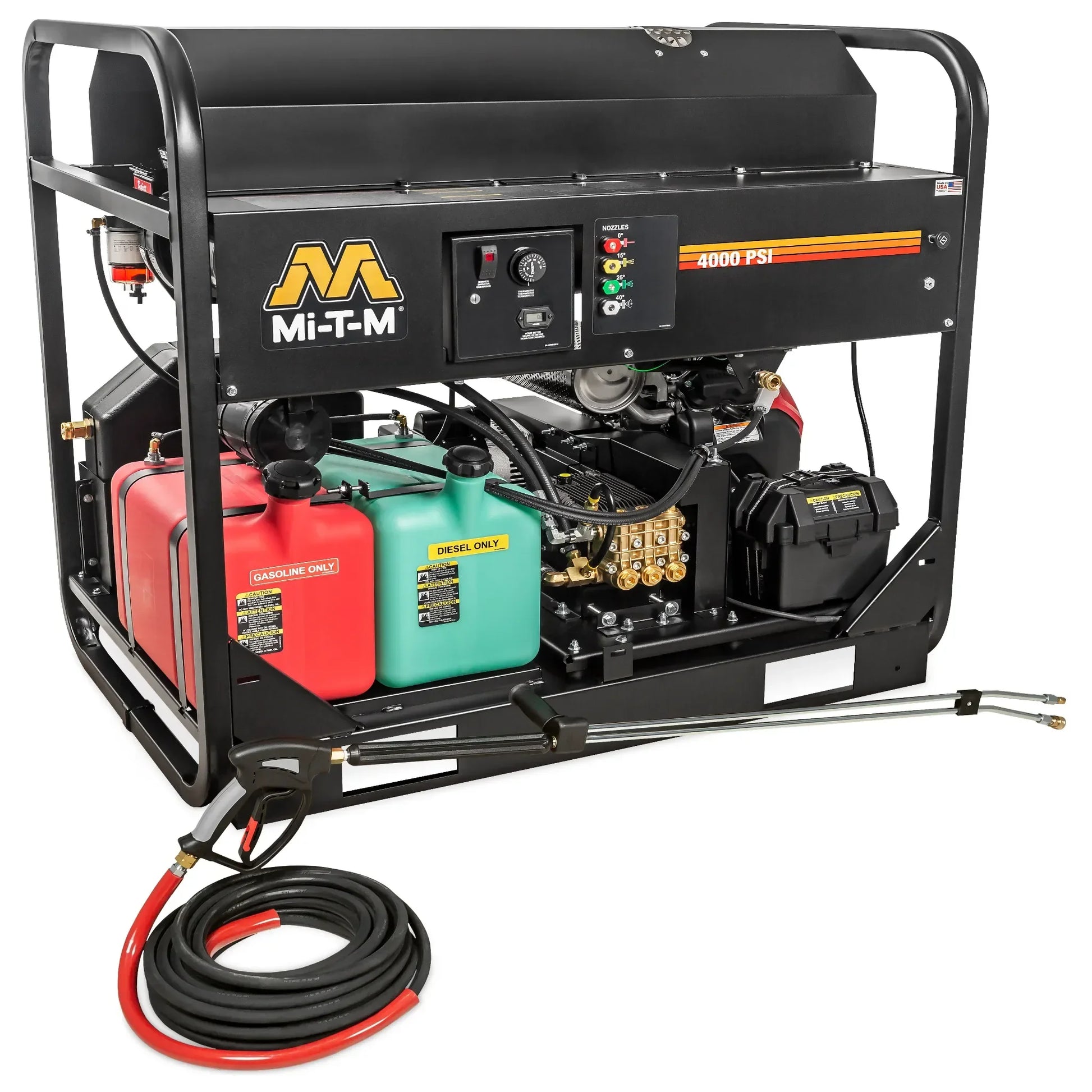

The Mi-T-M HS Series Gasoline Belt Drive Hot Water Pressure Washer (Model HS-4004-1MAH) delivers unmatched cleaning performance for demanding commercial and industrial jobs. Built with a powerful 688cc Honda GX630 OHV engine and a heavy-duty AR pump, this hot water pressure washer is designed for reliability, durability, and performance on the go. Mount it on a trailer or in a truck bed for easy transport between jobsites — and tackle grease, grime, and oil effortlessly.

Why You'll Love the Mi-T-M HS-4004-1MAH

• Powerful Cleaning Output – 4000 PSI and 4.0 GPM deliver superior cleaning power for tough industrial grime.
• Durable Honda Engine – Reliable 688cc Honda GX630 OHV engine ensures long-lasting performance.
• Professional Hot Water System – Produces water up to 200°F for efficient grease and oil removal.
• Mobile and Mountable Design – Compact frame ideal for truck or trailer installation.
• Built to Last – Reinforced powder-coated steel frame and dual cogged belt drive system for extended lifespan.

Perfect For:

• Industrial and commercial cleaning professionals
• Fleet and vehicle maintenance facilities
• Construction and equipment cleaning
• Municipal and public works departments
• Agricultural and farm machinery cleaning

Key Features and Benefits

• Pump: External bypass system protects from heat build-up; factory preset unloader; forged brass manifold and 80-mesh stainless steel water strainer.
• Engine: 688cc Honda GX630 OHV gasoline engine with electric start (sealed battery included).
• Frame: Heavy-duty powder-coated steel frame built for rugged environments and easy mounting.
• Components: 2900-watt generator, heavy-duty dual cogged belt drive system, ½-inch Schedule 80 coil with stainless-steel wrap, and No. 1 or No. 2 diesel/kerosene burner (not bio-fuel approved).
• Heat Output: Delivers a 150°F (66°C) temperature rise above ambient, reaching a maximum outlet temperature of 200°F.
• Includes: Quick connect nozzles (0°, 15°, 25°, 40°), 50-ft x 3/8-inch steel wire-braided hose, adjustable pressure dual lance with trigger gun.
• Safety: Model includes trapping unloader (others feature K7 flow actuated unloader). CARB compliance required for California models — consult factory.
• Optional Accessories (must be ordered with unit):
  • HX-0130 Three-way Ball Valve: Switch between garden hose, float tank, or trailer supply tank.
  • HX-0142 Steam Combination 250°F: Boosts output temperature up to 250°F.
  • HX-0145 Adjustable Thermostat: Control water temperature between 86°F–248°F.
  • HX-0146 Hour Meter: Track total operating hours for maintenance scheduling.
  • HX-0147 Four Point Lifting Capability: Allows secure lifting via crane.
  • HX-0148 Adjustable Detergent Valve: Enables soap injection through the high-pressure pump (requires trapping unloader; consult factory).

Specifications

Documents

Spec Sheet

Manual
